2626547

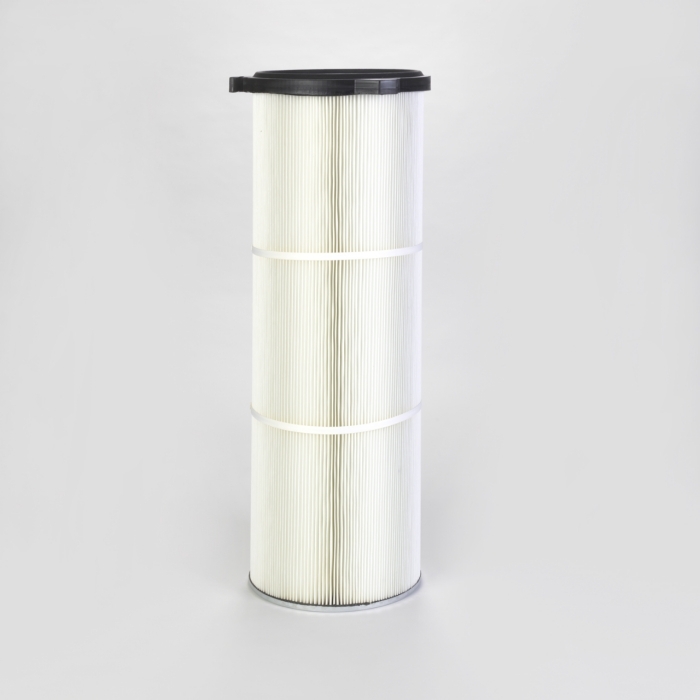

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 145 mm outer diameter x 1515 mm long including top gasket; Special features: Filter area 4.86 m² and Dirty Air Plenum and Clean Air Plenum installation for Series 145 and other brands of cartridge collectors

Diameter (mm)	145
Inner Diameter (mm)	94
Length (mm)	1515
Media	Polyester Class L
Media Weight (g/m²)	270
Area (m²)	4.86
Unit Family	Quick Fix 3
Pitch Diameter (mm)	180
Top End Cap Design	Open with 3 Hooks
Pleath Height (mm)	25
Number of Pleats	65
Max. Temp (°C)	60
Volume (m³)	0.0755
Weight (kg)	3.43
